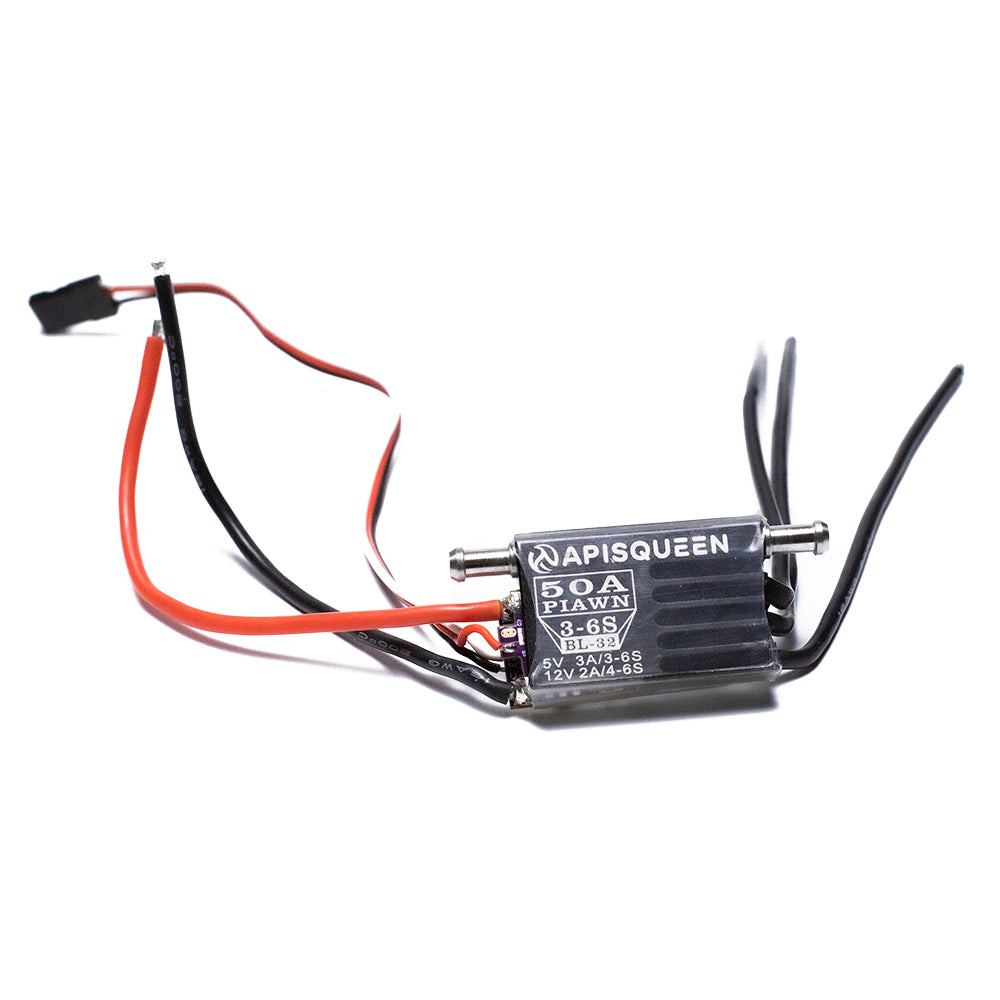

APISQUEEN 2-6S 50A ESC Electronic speed controllers for mini hydro/RC boat/Pro boat
Instruction manual (user manual):https://cdn.shopifycdn.net/s/files/1/0621/5493/2452/files/Prawn.pdf?v=1679646598
1：RM 32-bit Cortex MCU, frequency up to 64 MHZ；
2： PWM frequency up to 128k, high frequency for higher throttle makes running smoother. ESC firmware is optimized, makes the throttle linearity
smoother and the response faster.
3： Supports regular 1-2ms pulse width input, as well as Oneshot125 (125-250us), Oneshot42 (41.7-83.3us) and Multshot (5- 25us). The input signal is
automatically detected by the ESC upon power up.All Dshot and Proshot signals are supported .
4：Damped light does regenerative braking, causing very fast motor retardation, and inherently also does active freewheeling；

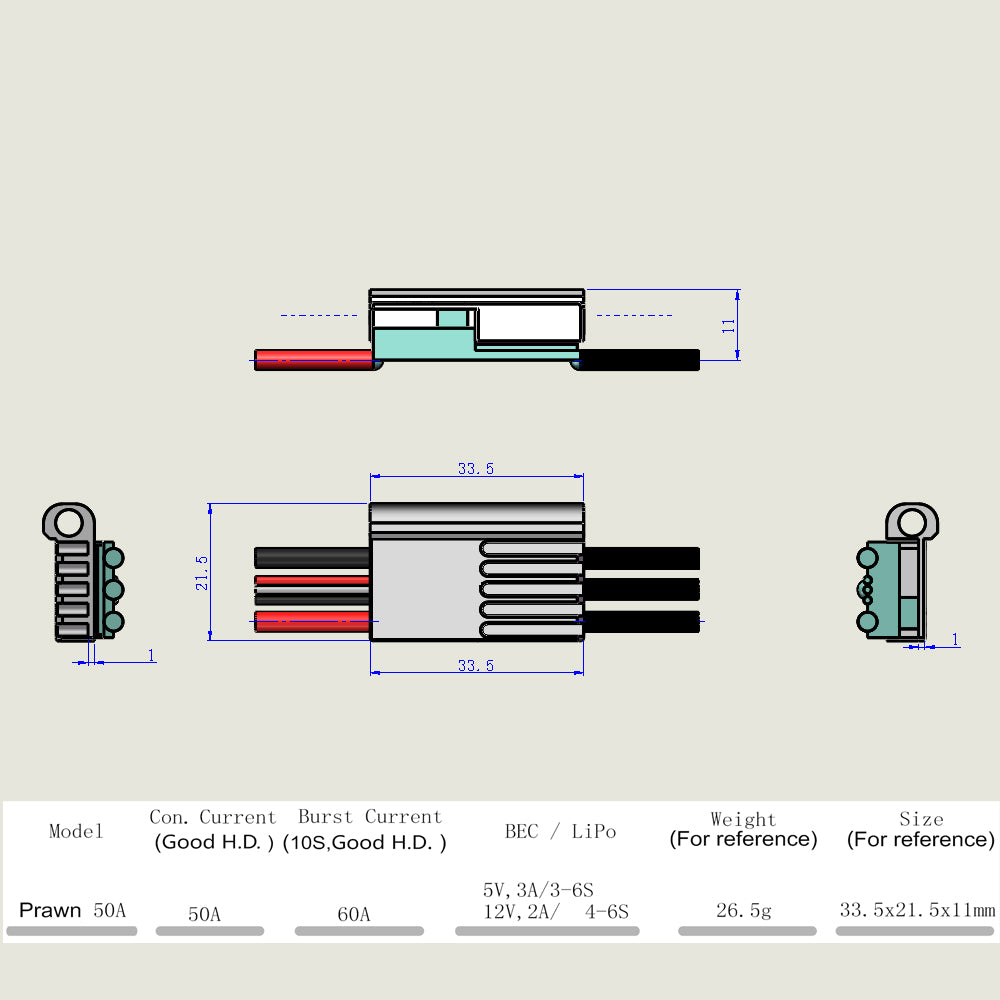

5：Small size and light weight, support higher KV motor and more power load；
6： The output of the modular BEC can supply power to the receiver, steering gear and other external devices, which makes the application of the ESC
more extensive； Adjustable BEC output 5V / 3A or 12V / 2A , more flexible application；
7：Nano waterproof (Splash-proof)；
