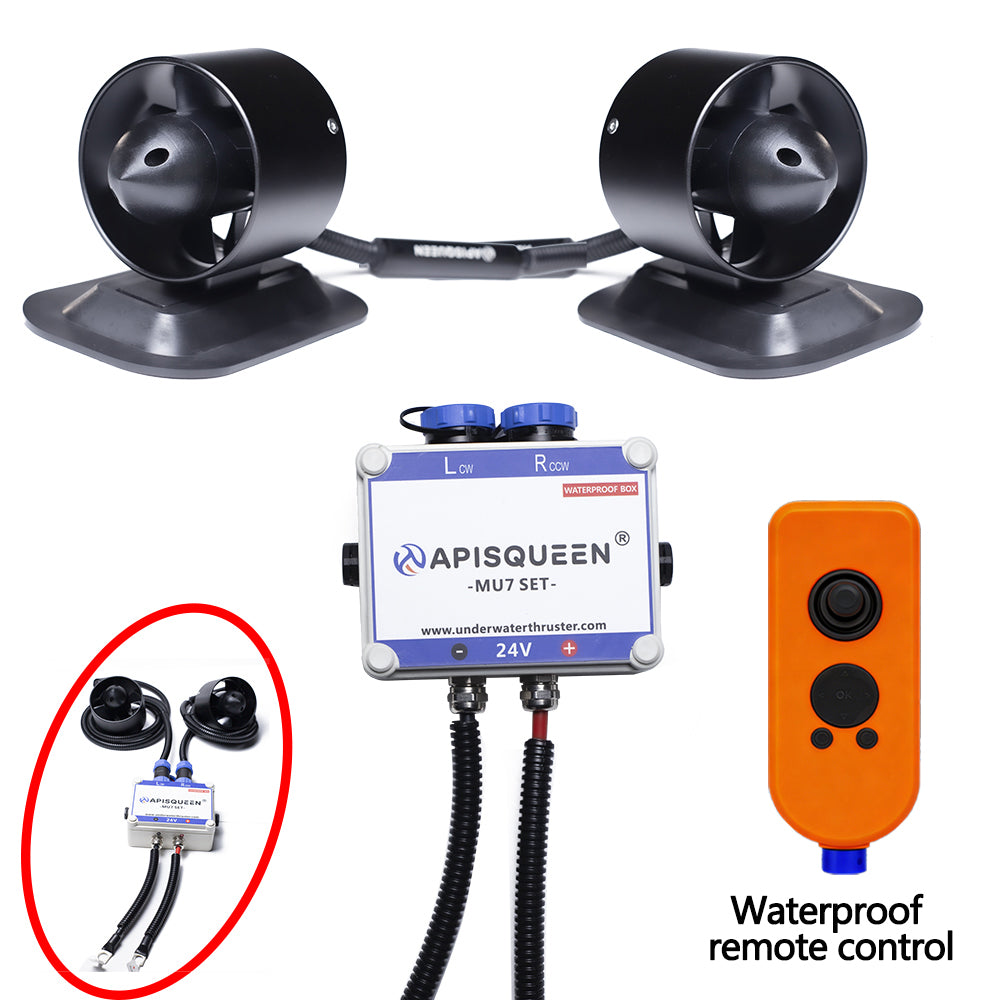

APISQUEEN TWO MU7 SET, 24V Total Thrust 10Kg（22LBS） with Remote Control for Inflatable Boats/Paddle Boards/Kayaks etc.
Solution for underwater thruster sets that do not operate or only one thruster operates(demonstrated in the video using an upgraded version of the U92)：
Voltage: 24V
Number of poles: 14 poles
Maximum power: ONE MU7 435W，Two MUT 870W
Material: aluminium alloy shell
MU7 use environment: seawater/freshwater
Total suite thrust (2 thrusters combined): 10Kg（22LBS）
Maximum total current of the set: 30A
Length of line from thruster to white sealed box:1.5 metres;
Positive and negative cable length:30cm;.
Waterproof grade of remote control: IP67;
Recommended battery: 24V, battery continuous operating current greater than or equal to 30A;
For example, if using 24V 100AH battery, it can be used continuously for about 4 hours under maximum throttle.
DESCRIPTION OF THE UNDERWATER THRUSTERS CW AND CCW
About remote control：
(1) The remote control is not waterproof;
(2) All the operation settings of the remote control have been completed, directly turn on the switch and toggle the rocker to use it.
Key Features of the W300 Remote Control:
(1) Water resistance: 1 meter
(2) Cruise control function
(3) Controls two thrusters to move forward, backward, and turn left or right
(4) During straight-line navigation, automatically corrects any deviation in course to maintain a continuous straight path
(5) Optional GPS module enables waypoint functionality and position holding against currents or headwinds
White Receiver Box Installation Instructions (For W300 Remote Control Version Only)
The white receiver box must be installed in a horizontal position.
The receiver box contains an internal gyroscope sensor. If the box is placed vertically, the built-in protection mechanism will be triggered, causing the motor to automatically stop running.
Please ensure the correct installation direction to maintain normal operation of the thruster.
Selling points:
1: Full metal body, not afraid of cuts;
2: Anti-corrosion, anti-oxidation, can be applied to fresh water, seawater and other environments;
3: With bi-directional ESC, can control the propeller forward and reverse at the same time;
4: ESC waterproof grade IP68, can be directly soaked in water, rapid heat dissipation, to maintain continuous and efficient operation of the thruster;
5: The material of the perishable parts propeller is high-strength plastic, the maintenance and replacement cost is greatly reduced;
6: The wire is made of silicone wire, anti-corrosion and anti-oxidation, and can withstand high temperature of 200℃;
ESC is completely waterproof and is fully immersed in water when in use, which dissipates heat quickly and keeps the thrusters working for long periods of time.
MU7 Thruster Dimensions:
